- Size: 0.78
- Place of Origin: Shandong Qingdao
- Brand Name: SMCC
- Model Number: 45,50,55,60,70,80,90,100
- Weight: 1000.000 kg

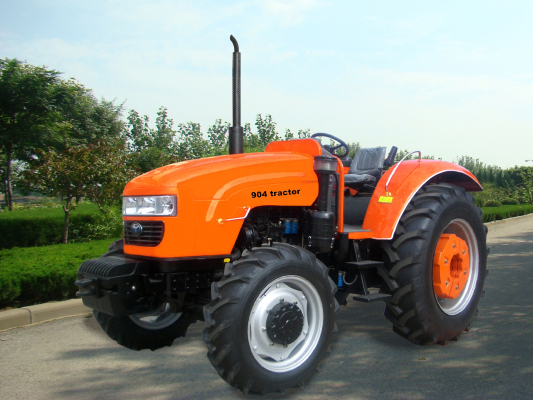

Model | 900 | 904 | |||||
Output | 90HP | 90HP | |||||
Tractor Parameter | Drive type | 2WD | 4WD | ||||
Structure mass (kg) | 3320 | 3650 | |||||
Min. operation mass(kg) | 3510 | 3890 | |||||
Rated traction(KN) | 18.5 | 20.8 | |||||
Wheel tread | Front（mm） | 1600-2100(Orig.1600) | 1610 | ||||
Rear（mm） | 1620-2050(Orig.1620) | 1650-2020(Orig.1650) | |||||
Wheelbase（mm） | 2195 | 2195 | |||||
Min.turning radius(m) | 3.9±0.2 | 4.2±0.3 | |||||
Min.ground clearance(mm) | 476 | 379 | |||||
Overall Dimensions(mm) | L×W×H | 4330×2030×3060 | 4370×2030×3060 | ||||
Theoretical Speed（Km/h） | Forward | 0.48-36.37 | 0.49-36.8 | ||||
Reverse | 0.65-11.25 | 0.66-11.38 | |||||
Engine | Model | LR4MC-T68Y | |||||
Type | Direct injection、Water cooled、4 stroke | ||||||
Bore*Stroke（mm） | 110×135 | ||||||
Rated Power（KW） | 67.6 | ||||||
Drive System | Clutch | Dry,Single-plate,independent,Dual function | |||||
Brake Type | Closed | ||||||
Walking System |
Tyre | Front | 7.50-16/6.50-20 | 11.2-24 | |||
Rear | 14.9-30/16.9-34 | 16.9-34/13.6-38 | |||||
Working Device |
Suspension | Max.Lifting Capability（KN） | 16.6 | ||||
type | Tri-point behind suspension | ||||||
